Información de la jaula
xFIA Certificated
Why Choose a Fully Certificated Roll Cage?
FIA Certificated roll cages offer a significant competitive edge over cages built to either MSUK or Minima FIA compliance standards. Engineered with high-performance materials and optimized geometry, they deliver maximum strength with minimal weight — often up to 20 kg lighter than minima-compliant designs, as they are often designed with smaller diameter and thinner gauge tube.
Key Features & Advantages
- FIA Certificated Designs
Built in accordance with the latest FIA roll cage homologation regulations. These designs are eligible for both UK and international events. - Superior Strength-to-Weight Ratio
Constructed from high-tensile T45 tubing (minimum tensile strength: 700 MPa), allowing for smaller diameter and thinner wall thickness without compromising structural integrity. - Stress-Tested Engineering
Each design is derived from a 3D scan, FEA tested to verify its integrity, stiffness, and optimal load paths. The FEA testing is completed by an independent FIA test house. - Weight Savings
On certain models, you can see a weight saving of up to 20 kg lighter than equivalent minima roll cages — a crucial advantage in competitive motorsport. - Global Acceptance
FIA certification ensures global recognition and eligibility for competition. - Increased Vehicle Value
Professionally installed certificated cages can enhance resale value and marketability.
Bolt In
Key Features of the Bolt-in Roll Cage Kit:
- Quick Installation:
- These kits offer a convenient way to install a roll cage in a car, especially compared to weld-in kits.
- Installation is simplified as it mostly requires bolting, with welding needed only for the footplates.
- Strength and Lightness:
- Using our FIA Certified Lap-Joints: These lap joints are a key feature, offering stronger and lighter performance compared to traditional fixings. Their design also makes them nearly invisible once the cage is painted.
- Footplate Design:
- Traditional footplate boxes are not used due to their unacceptability in international events, replaced with underfloor doubler plates, which are more robust and secure.
- OEM Mounting Points:
- Some of our bolt-in designs utilise OEM mounting points in the body shell. This method is not suitable for MSUK or FIA-sanctioned events — please contact the technical sales team for further details.
- Fixing Points:
- Depending on the car’s category and model, there are up to 14 fixing points.
- High-Quality Fasteners:
- The kit uses high tensile 12.9 grade fixings, which are strong, durable, and included with the kit.
- Coating Options:
- The kit can be supplied either with a powder-coated finish for extra durability and aesthetics, or in plain steel, which can be customized by the installer.
Descripción de la jaula

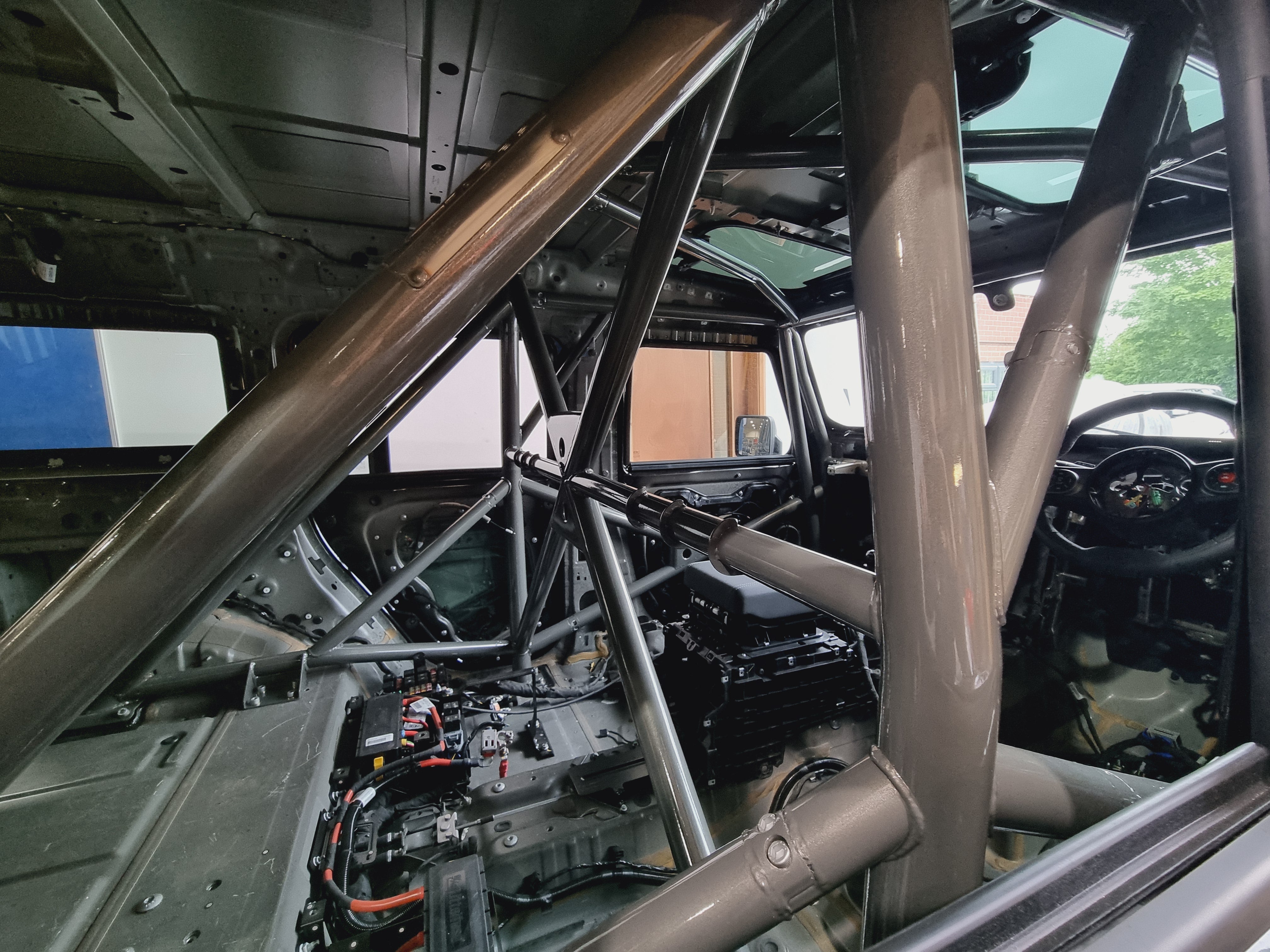

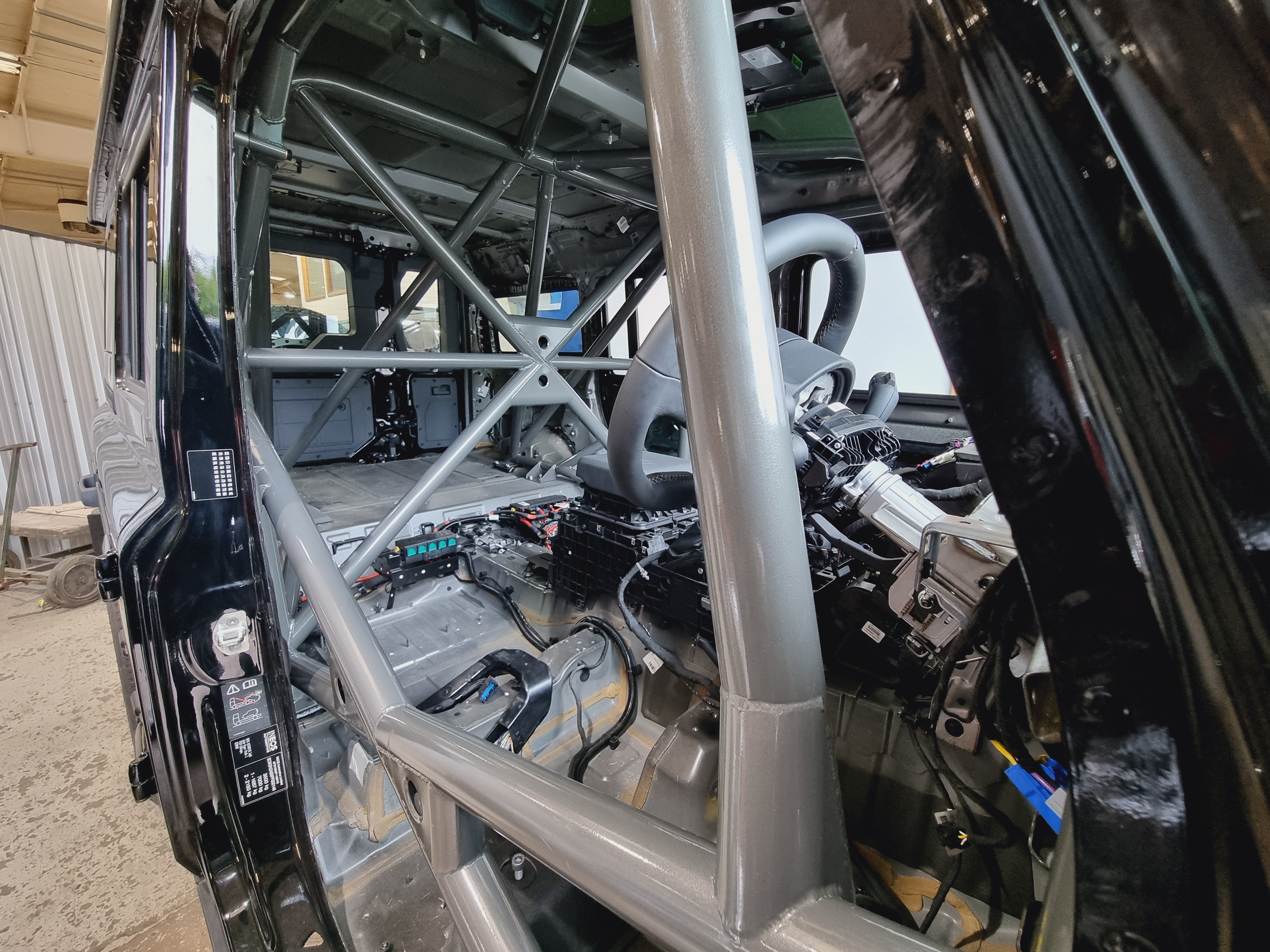

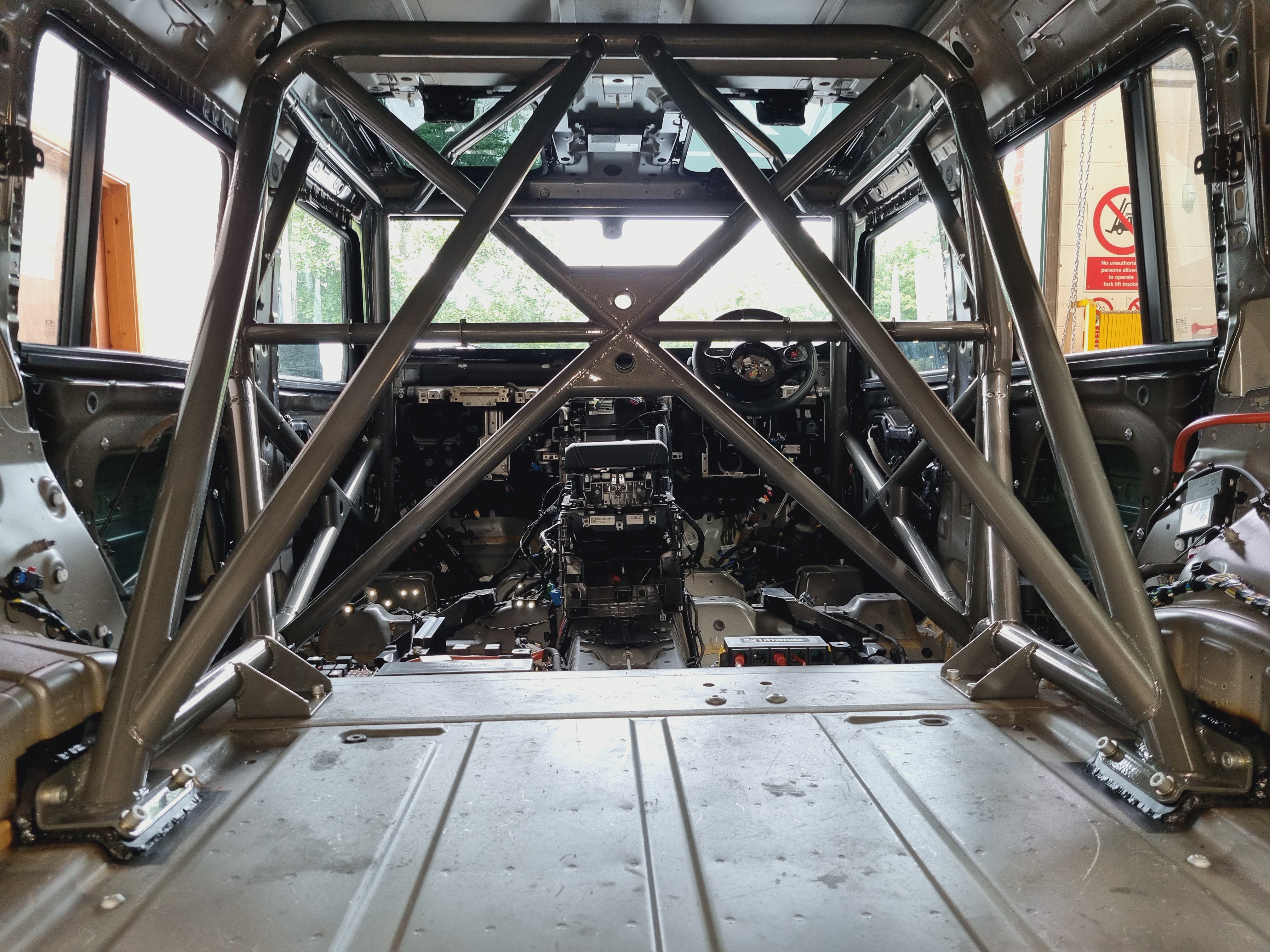

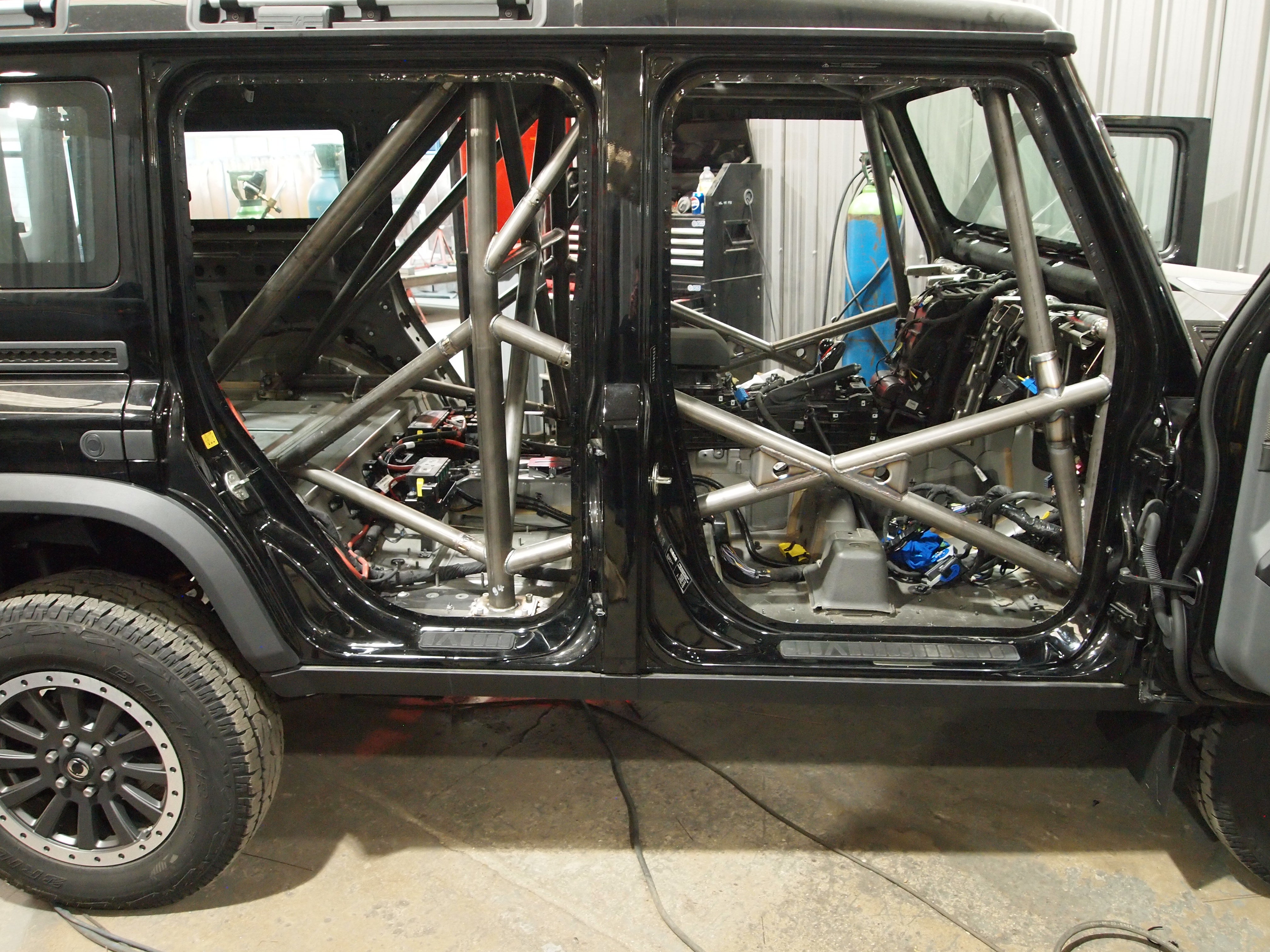

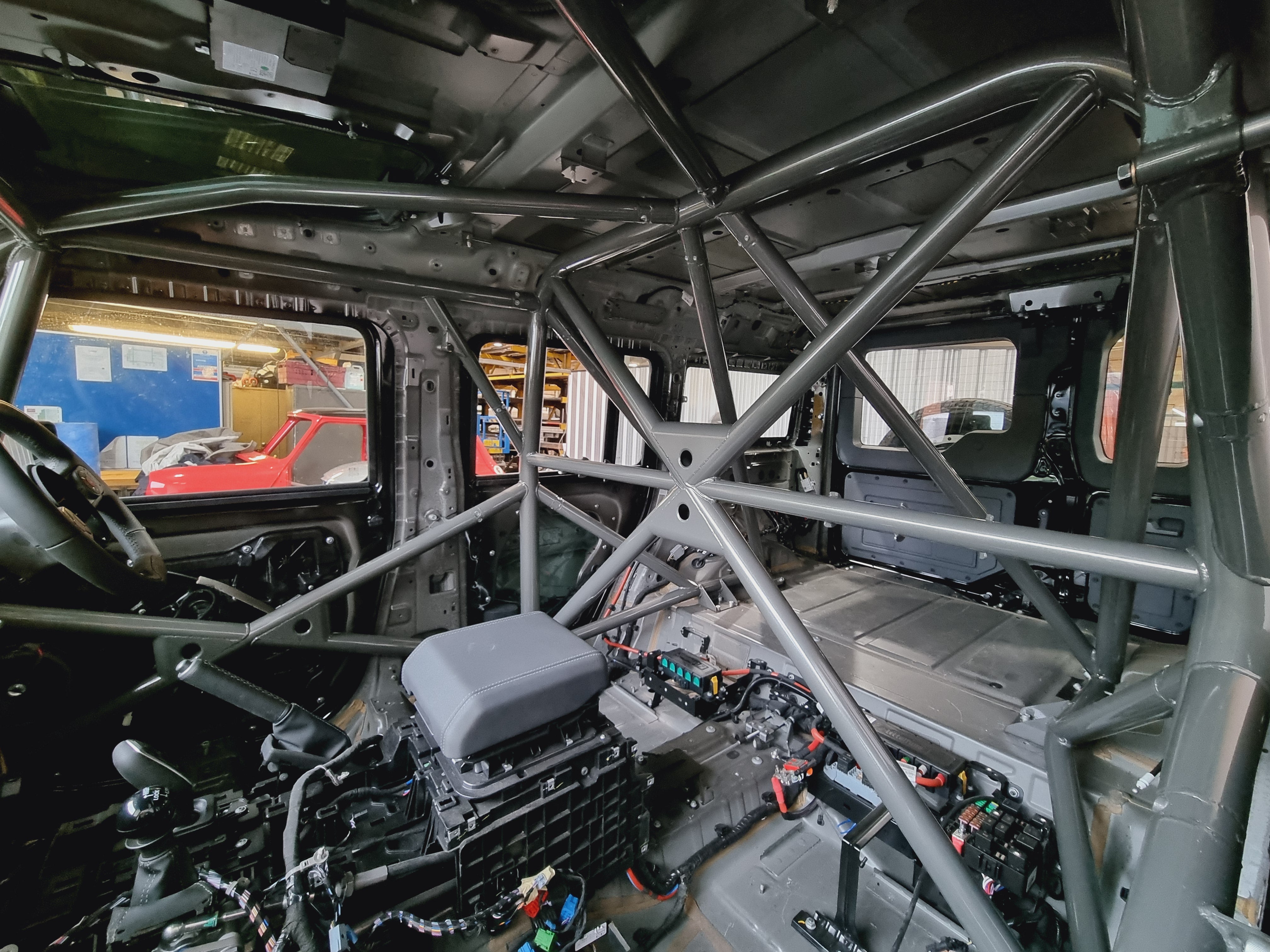

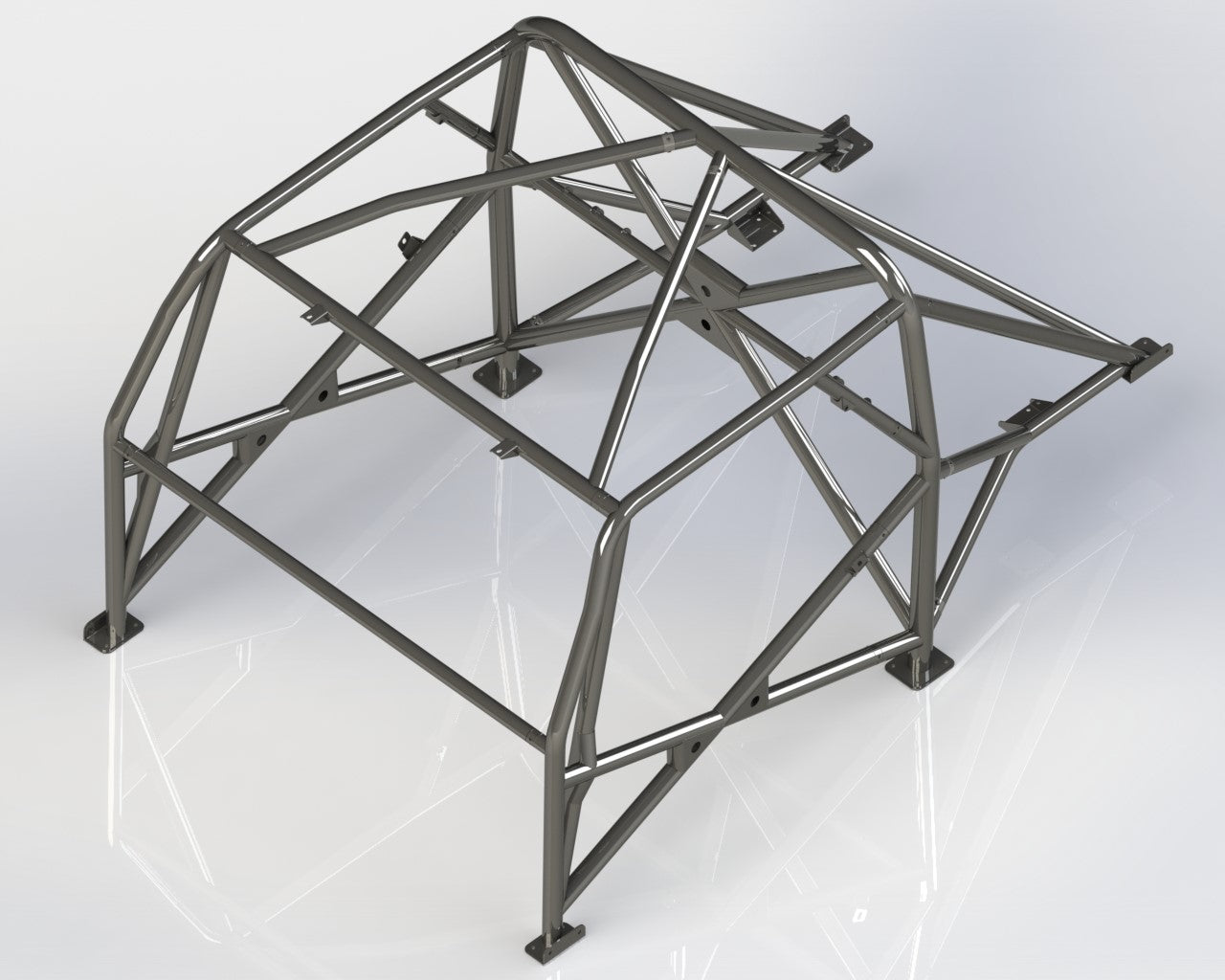

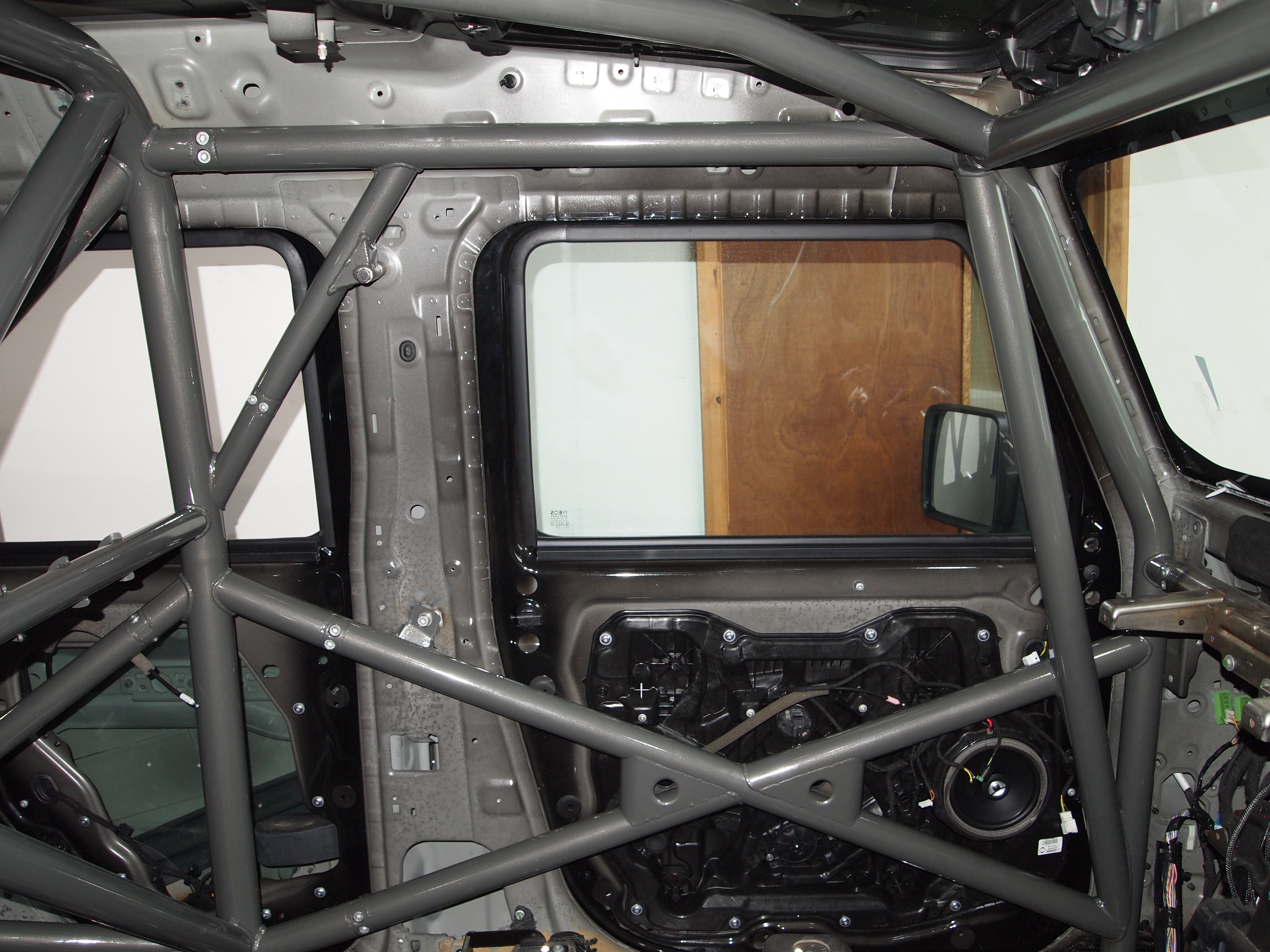

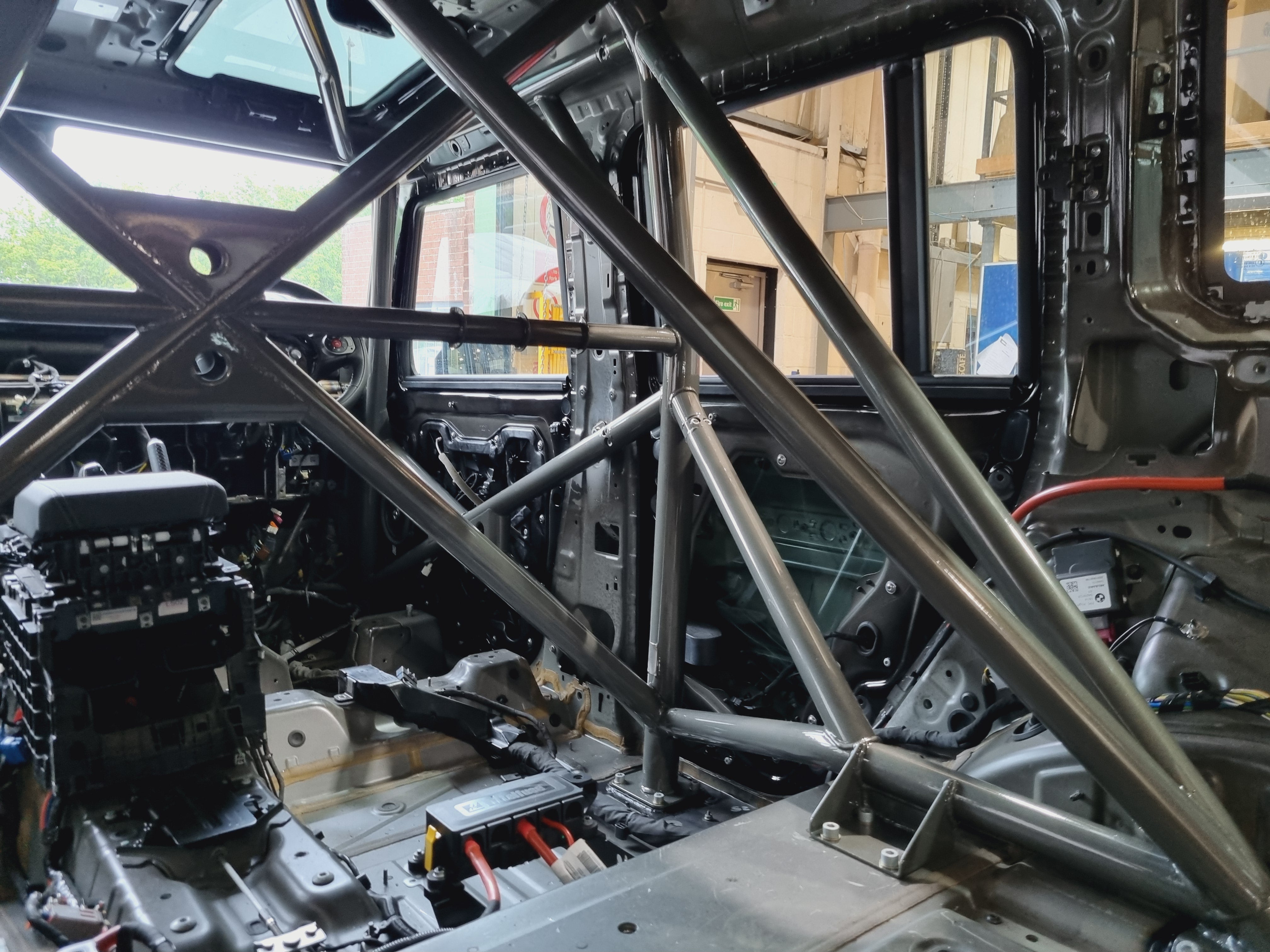

xOur INEOS Grenadier T45 Bolt-In Roll Cage is the result of an exclusive engineering collaboration developed with Buzz Special Vehicles. Designed to meet the demands of the world’s most rugged terrain, this FIA Certificated kit is produced from high tensile T45 tubing, providing a world class safety cell for the Grenadier's unique chassis. This roll cage includes doublers which provide an interface for cage mounting points to tie in to the advanced chassis of the Grenadier
By utilizing aerospace grade T45, this cage offers immense structural integrity while providing a significant weight saving—crucial for maintaining a low center of gravity in off road and expedition environments.
Buzz Special Vehicles: Engineered in collaboration with the industry leaders in 4x4 specialists and vehicle customisation, modification and repair.
Aerospace Grade T45: Manufactured in high tensile T45 tube for a superior strength to weight ratio compared to standard steel.
FIA Certificated: Fully eligible for FIA sanctioned events when installed following the certification process.
Optimized Geometry: Laser profiled and CNC bent tubes ensure an optimum fit that integrates with the Grenadier's rugged interior.
Superior Rigidity: Delivers modern chassis stiffness to this ultimate 4x4 platform, improving predictability under load. To learn more: What Does Each Tube Do In a Roll Cage?
Please contact sales@customcages.co.uk for more details.
Certificación de jaula de seguridad
xA roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
To compete in any race or rally your roll cage will need to comply with either MSA or FIA regulations. (Effectively, the MSA is governed by the FIA so if a roll cage design complies with FIA regs, then it is also eligible for MSA events). There are some instances where the FIA allows certain design features where the MSA do not (and vice versa).
The certification process generally allows for a lighter roll cage because it is a bespoke design where the diameter and thickness of each tube is optimised to achieve the overall strength required by the FIA/MSA rules.
In order to compete in MSA/FIA events every vehicle, which has a certificated design of roll cage, should have a copy of a valid certificate to present at scrutineering. Custom Cages has certified the majority of popular roll cages. All other roll cages comply with MSA/FIA regulations and receive a Letter of Conformity for competitors to present to scrutineers.
To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test.
Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity.
Additional samples may be requested.
Certificates will only be issued on completion of a successful test.
Please be aware that there is a charge of £60.00 + VAT for all MS UK / FIA Certificates
Contenido del Kit de Jaula de Seguridad
x
Your Roll Cage arrives checked and packed ready to install.
- CNC laser-cut and end-formed tubes
- Footplates & gussets, laser cut and folded
- Weld test sample included – see our Certification Video Guide for more details
- Buildmaster included — every Roll Cage part has a unique sticker ID to help locate the correct part; this is used during checking and packing and is signed off twice
- Important documents – declaration forms and fitting guides included
- Unique ID plaque – do not lose this; the ID plaques are unique to each individual cage kit and must be welded to the cage during installation
- Installed images are available on request
Especificación
x| Brand | Ineos |
| Model(s) | Grenadier |
